Serving Trolleys

Serving on rolls

Scroll

Animo values the way you serve and has a serving trolley to suit every application

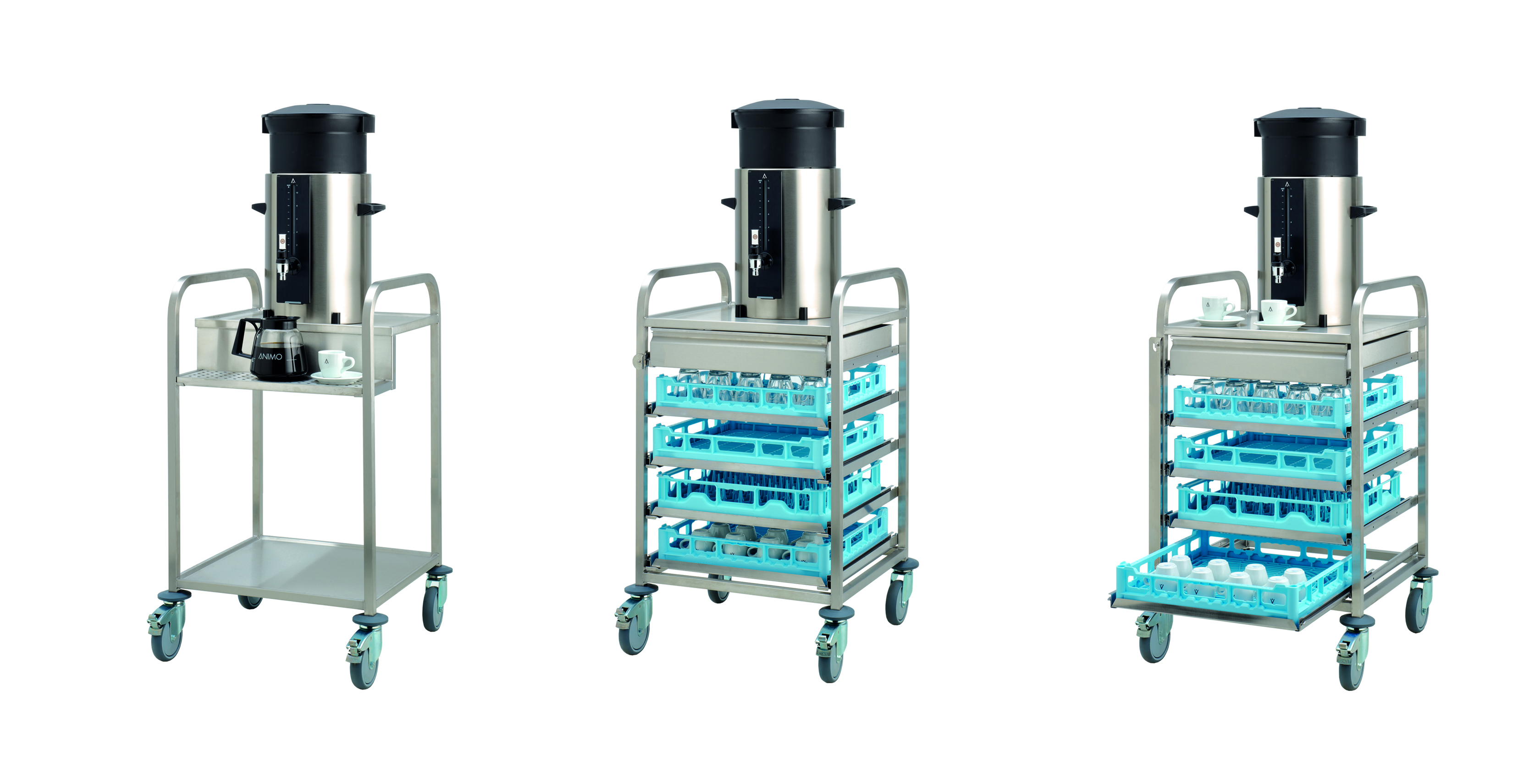

Animo serving trolleys come everywhere

Serving Trolleys from Animo are made for years of trouble-free use. They move smoothly and silently, even in elevators and narrow passages. In doing so, they can take a beating. They are easy to clean and take up little space. Moreover, they are available exactly in that version that suits your situation. In every department of the nursing home, in every wing of the convention center, to the highest floor of the office complex … Animo coffee serving Trolleys go everywhere.

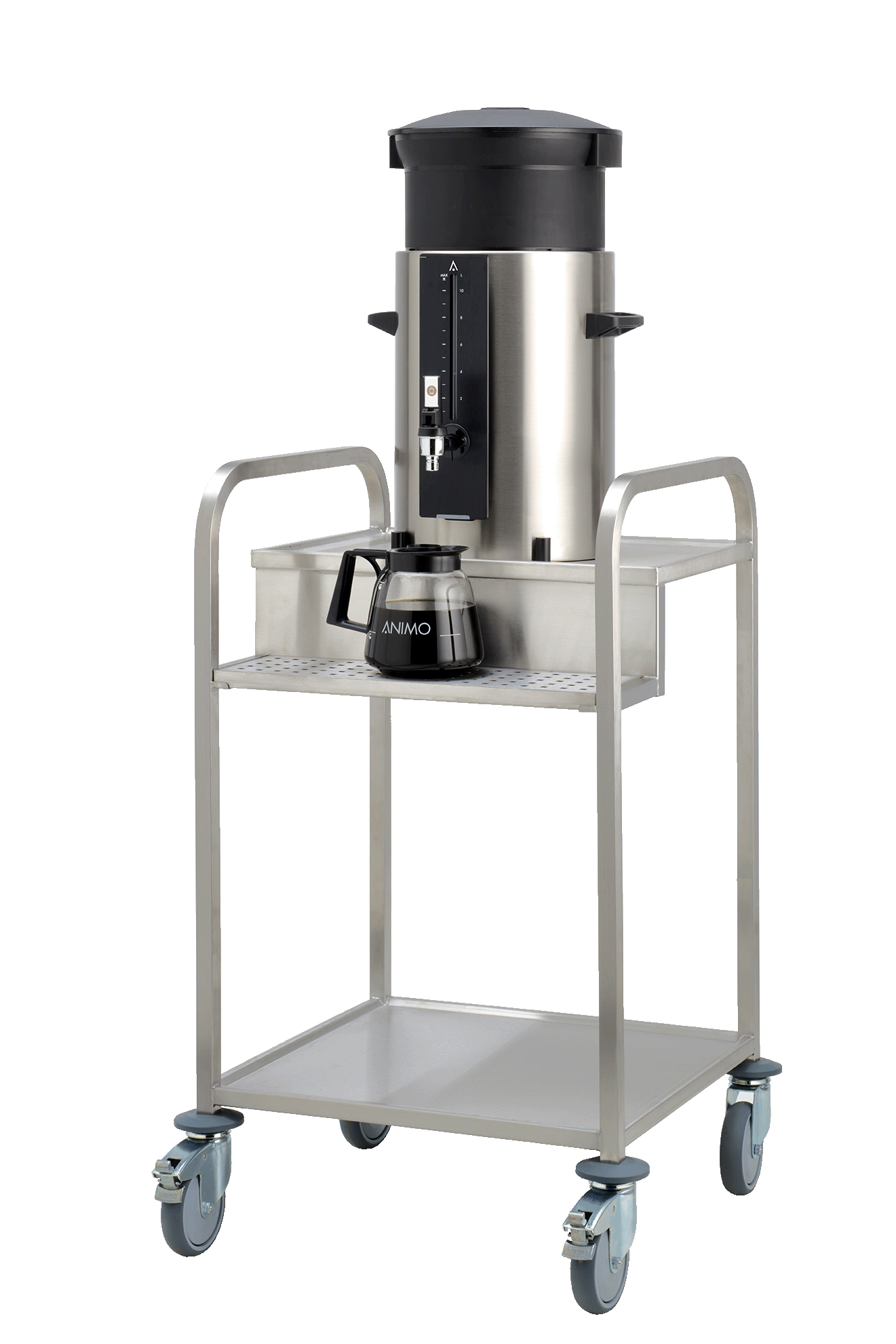

Open type J, S and C

The open serving trolleys are ideally suited for transporting coffee and tea containers. The trolleys come standard with two swivel casters, one with a brake. The top plate has a drip tray and centering lugs. The bottom plate has space for thermos jugs, for example. Centering lugs prevent the container from sliding during transport. The center of gravity always remains safely above the wheelbase. Instead of centering lugs, a retaining ring can also be installed.

Type JR and ST

These very spacious and flexible serving trolleys feature a rail system for removable stainless steel serving trays. The trays have space for cups, saucers and other items. The wagons are closed on three sides, providing a neat appearance. The JR and ST types also come standard with a drip tray. Moreover, you can expand them into versatile mobile buffets with a few accessories.

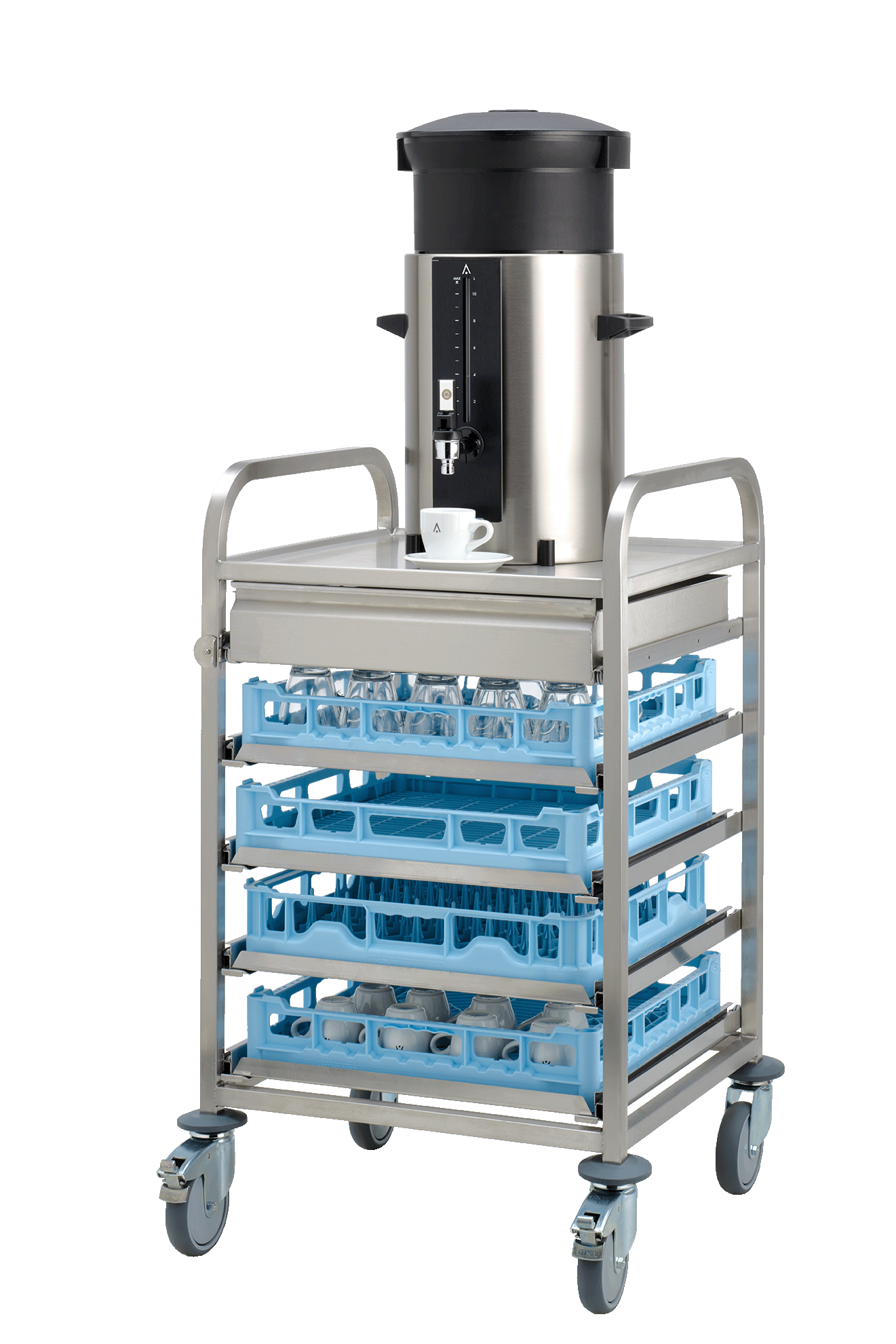

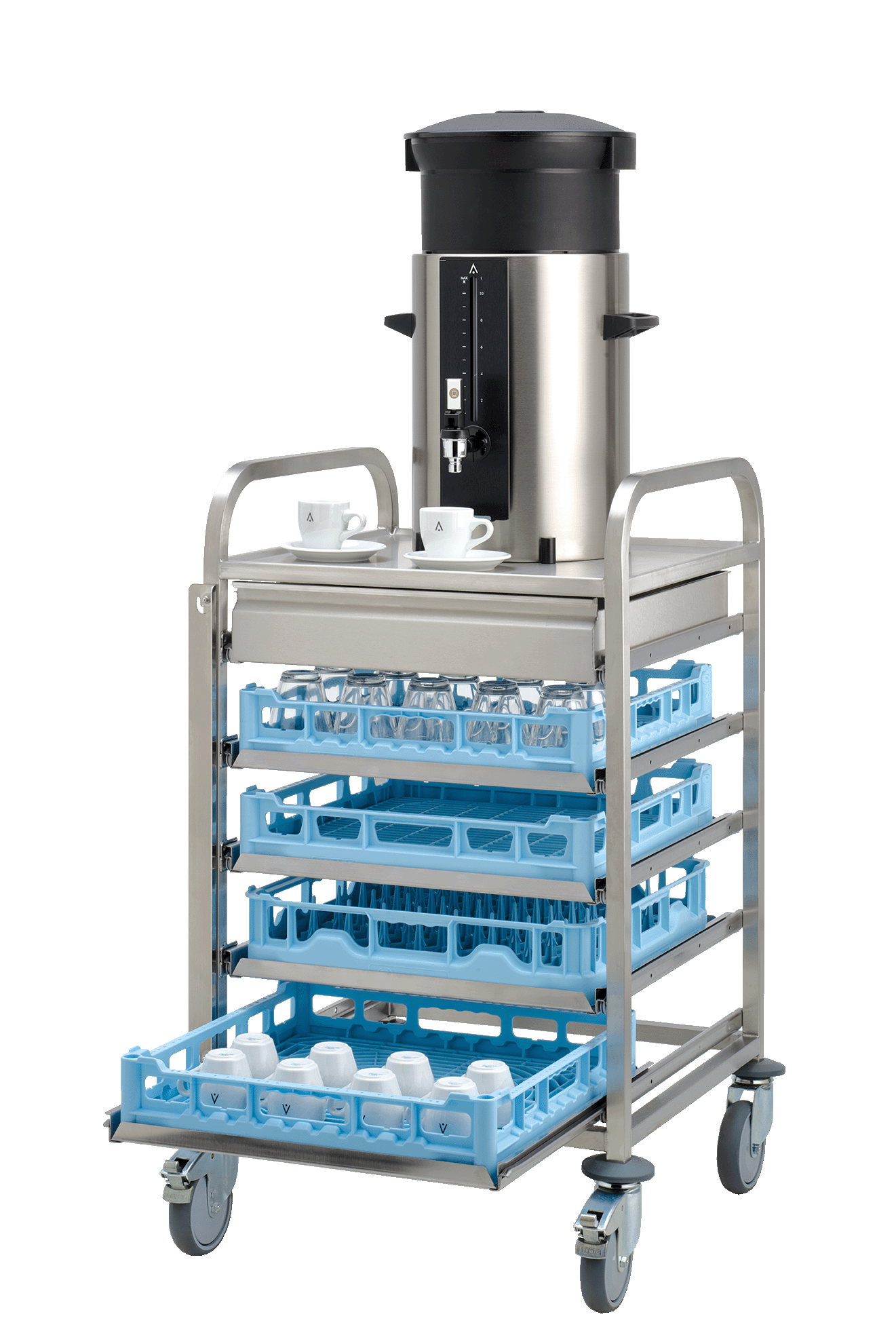

Type SK VL

These serving trolleys are specially designed for transporting dishwasher rinse baskets. Each basket has room for about 30 cups and saucers. The rinse baskets can be placed in the dishwasher from the serving trolleys in no time. After the washing program, the basket can be returned clean to the serving trolley. There are slots in the tubular frame of the serving trolley. These make it possible to fit slide-out shelves, rinse baskets and drawers at any desired height. You can completely customize the serving trolley. Even with a fully loaded SK serving truck, you should always be able to maneuver smoothly. Therefore, there are several provisions for safe transportation. To save as much weight as possible, the cars have an open lower frame. In addition, these serving trolleys feature a convenient push and pull handle.

Serving trolleys with many pluses

  • For years of trouble-free use
  • Noiseless
  • Universally applicable
  • Ideally suited for use in conjunction with Animo’s other products
  • Executed in high quality stainless steel

Models

  • Type J

    • For 1 container type CE/CI 4 ltr to maximum 10 ltr or 1 container type CNe of 5 ltr. up to 10 ltr
    • Supplied with centering cams and drip tray
    • W 455 x D 660 x H 853 (without container)
    • Dimensions top shelf: W 385 x D 354
    • Item no. 60004

  • Type S

    • For 1 container type CE/CI 4 ltr to maximum 20 ltr or 1 container type CNe from 5 ltr to 40 ltr
    • Supplied with centering cams and drip tray
    • W 590 x D 795 x H 853 (without container)
    • Dimensions top shelf: W 519 x D 482
    • Item no. 60006

  • Type C

    • For 2 containers type CE/CI 4 ltr to maximum 10 ltr or 2 containers type CNe from 5 ltr to 10 ltr
    • Supplied with centering cams and 2 drip trays in intermediate tray
    • W 940 x D 560 x H 853 (without container)
    • Dimensions top: W 775 x D 354
    • Item no. 60001

  • Type JR

    • For 1 container type CE/CI 4 ltr to maximum 10 ltr or 1 container type CNe from 5 ltr to 10 ltr
    • Supplied with centering cams and round drip tray on top sheet
    • Holds approximately 95 stackable cups and saucers
    • W 455 x D 620 x H 1043 (without container)
    • Dimensions top shelf: W 385 x D 354
    • Item no. 60002

  • Type ST

    • For 1 container type CE/CI 4 ltr to maximum 20 ltr or 1 container type CNe from 5 ltr to 20 ltr
    • Supplied with centering cams and round drip tray on top sheet
    • Holds approximately 160 stackable cups and saucers
    • W 525 x D 860 x H 1043 (without container)
    • Dimensions top: W 452 x D 419
    • Item no. 60005

  • Type SK10 VL

    • For 1 container type CE/CI 4 ltr to maximum 20 ltr or 1 container type CNe from 5 ltr to 10 ltr
    • Comes standard with extendable work platform
    • W 660 x D 640 x H 1043 (without container)
    • Dimensions top: W 588 x D 568
    • Item no. 60035

  • Type SK15 VL

    • For 2 containers type CE/CI 4 ltr to maximum 20 ltr or 2 containers type CNe from 5 ltr to 20 ltr
    • W 1020 x D 640 x H 1043 (without container)
    • Dimensions top shelf: W 944 x D 568
    • Item no. 60036

  • Type SK20 VL

    • For 2 containers Type CE/CI 4 ltr to maximum 20 ltr or 2 containers Type CNe from 5 ltr to 20 ltr
    • W 1220 x D 640 x H 1043 (without container)
    • Dimensions top shelf: W 1148 x D 568
    • Item no. 60037

The overview below shows which accessories are available for the various Animo serving trolleys.

 TYPE ”J’‘TYPE ”S’‘TYPE ”C’‘TYPE ”JR’‘TYPE ”ST’‘TYPE ”SK10 VL’‘TYPE ”SK15 VL’‘TYPE ”SK20 VL”
Drawer
Item no. 68123
Lock on drawer (on top drawer only)
Item no. 08093
Drawer
Item no. 68118
Foldable side blade (*)
Item no. 68008
Serving tray stainless steel (W=329xD=397)
Item no. 69700
Spoon cup
Item no. 69703
Bottle holder
Item no. 69100
Drip tray with grid on top guide rail
Item no. 63001
Drawer
Item no. 68127
Foldable side blade (*)
Item no. 68009
Drawer small (incl. beams)
Item no. 68447
Serving tray (including girders)
Item no. 68431
Insert small
Item no. 68422
Drawer large (incl. beams)
Item no. 68445
Slide-out rinse basket
(including girders)
Item no. 68441
Drip tray for rinsing basket
Item no. 63106
Insert base large
Item no. 68423
Drip tray top
Item no. 63004
Beams for universal trays
Item no. 1006180
Dumpster
Item no. 68424
Dish holder (approx. 30 dishes)
Item no. 68428
3 Centering cams black (plastic)
Item no. 99724
Removable top edge
SK 10 VL
Item no. 68523
Removable top edge
SK 15 VL
Item no. 68524
Removable top edge
SK 20 VL
Item no. 68525
Locking ring
(instead of centering cams)
CE/CI 4 – 6, CN5e
Item no. 54471
Locking ring
(instead of centering cams)
CE/CI 8 – 10
Item no. 54472
Locking ring
(instead of centering cams)
CE/CI 12 – 25, CN10e
Item no. 54473
Locking ring
(instead of centering cams)
CN20e
Item no. 54479
Locking ring
(instead of centering cams)
CE/CI 40
Item no. 54474
Locking ring
(instead of centering cams)
Thermos container 2.4 ltr.
Item no. 54476
Parking rails
(per pair for 1 serving trolley)
Item no. 69101

* = When ordering, please indicate on which side the folding side shelf is needed (left or right)

Requesting a quote

Animo offers you the possibility to make a no-obligation quote request very easily and quickly. You will then receive a response from an authorized Animo dealer in your area very soon.
