OptiBean X

A perfect cup of class

Scroll

A strong espresso, the perfect cappuccino, a delicious lungo – whatever you drink, the true taste is in the smallest details, which is exactly what the OptiBean X offers

Businessman drinking coffee in a cafe

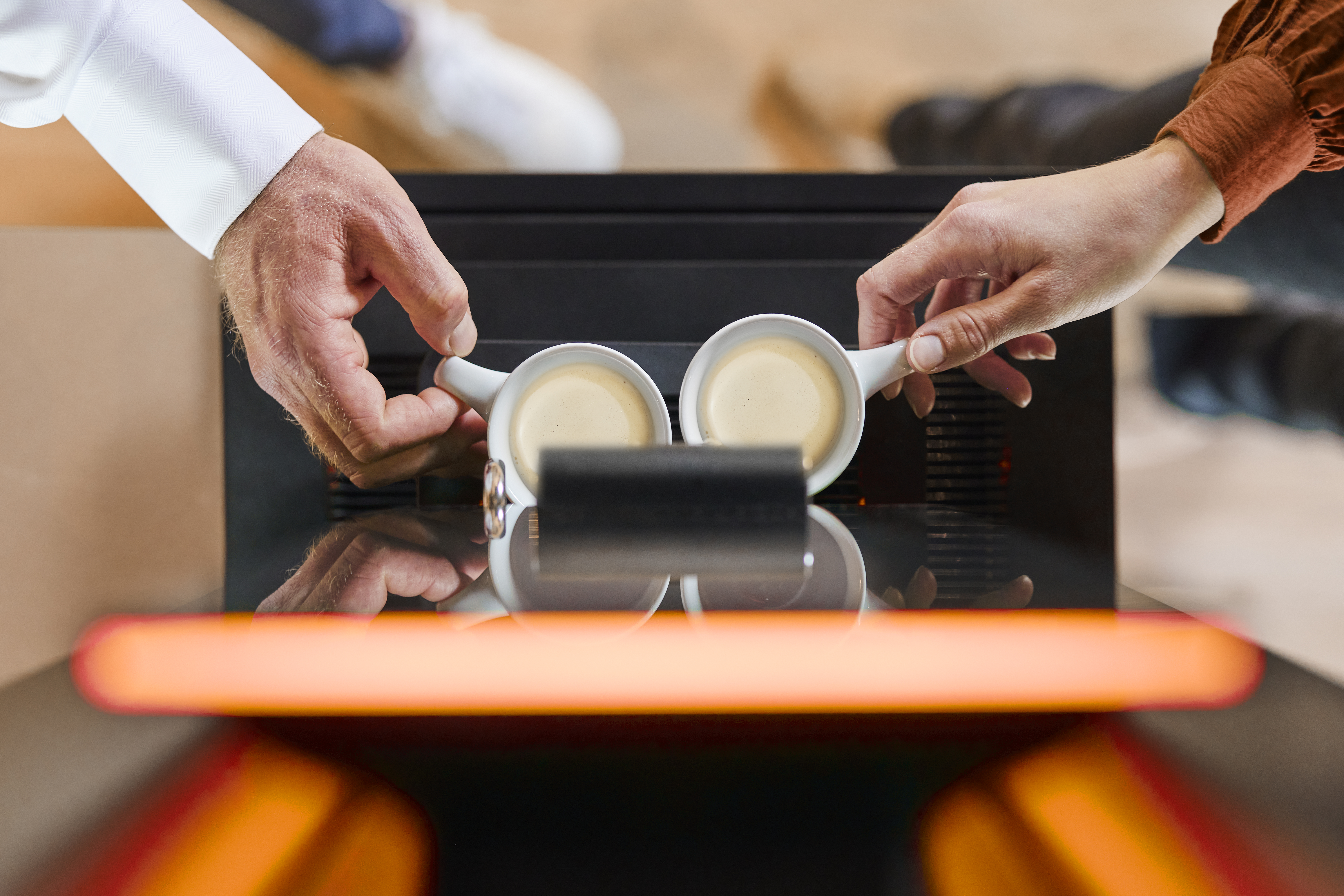

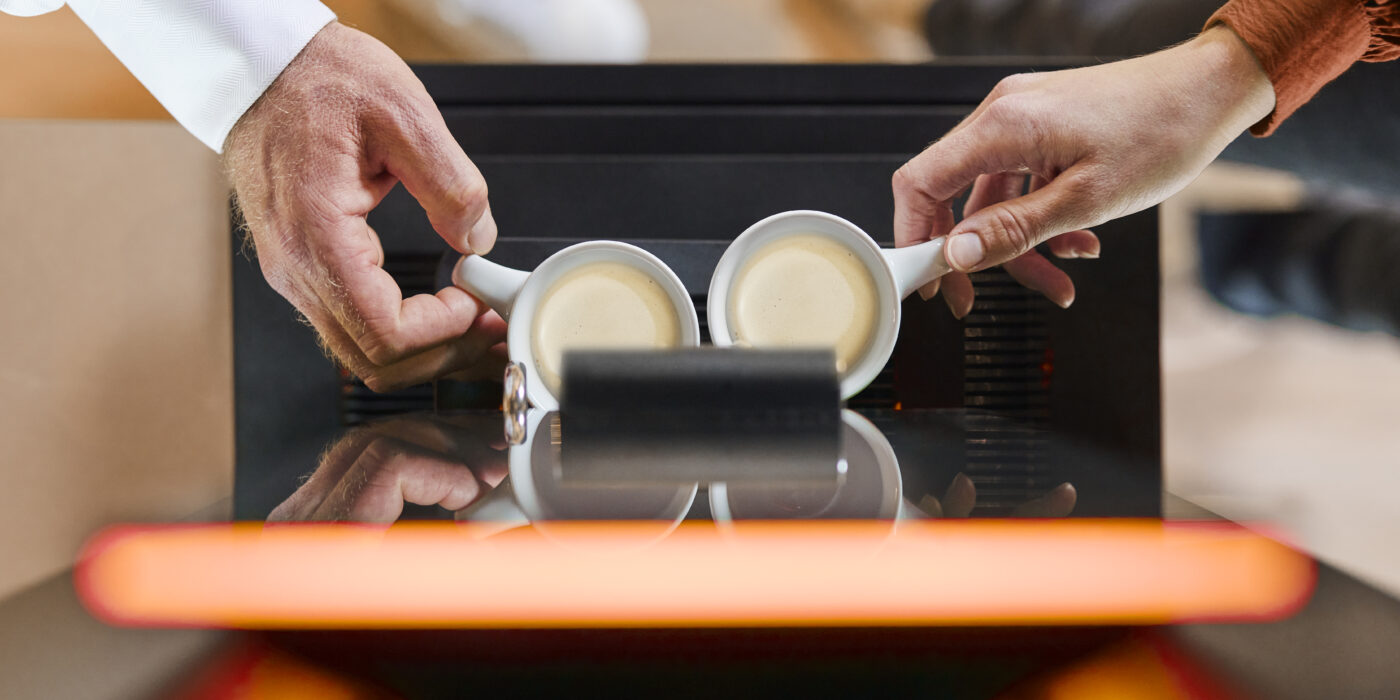

Animo OptiBean X brewing two cups of coffee simultaneously

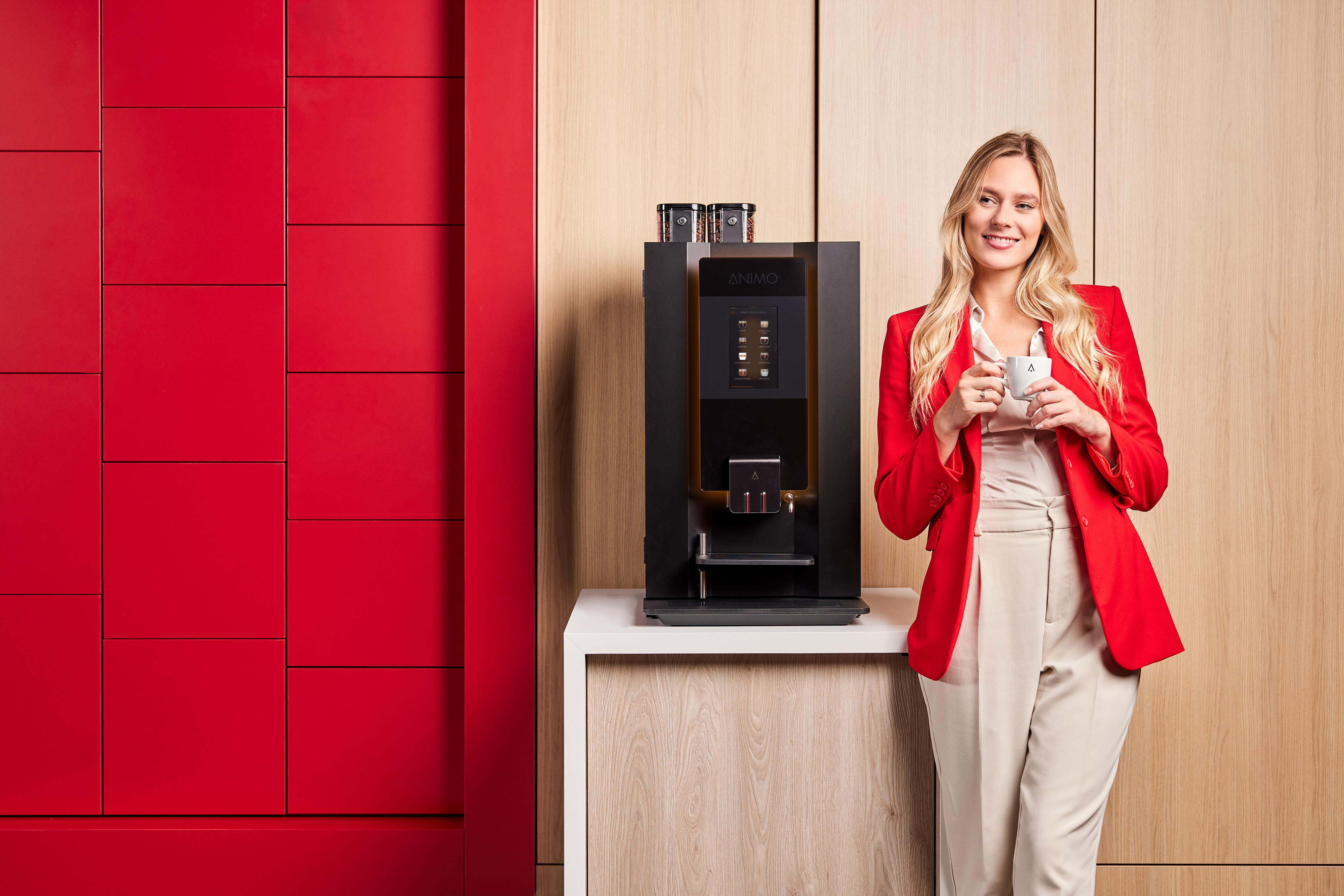

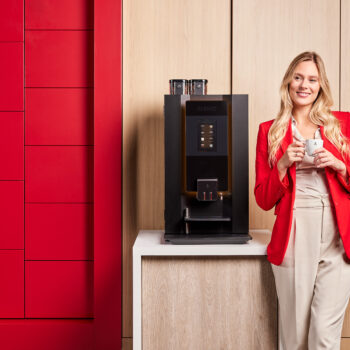

Woman drinking coffee from an Animo OptiBean X coffee machine

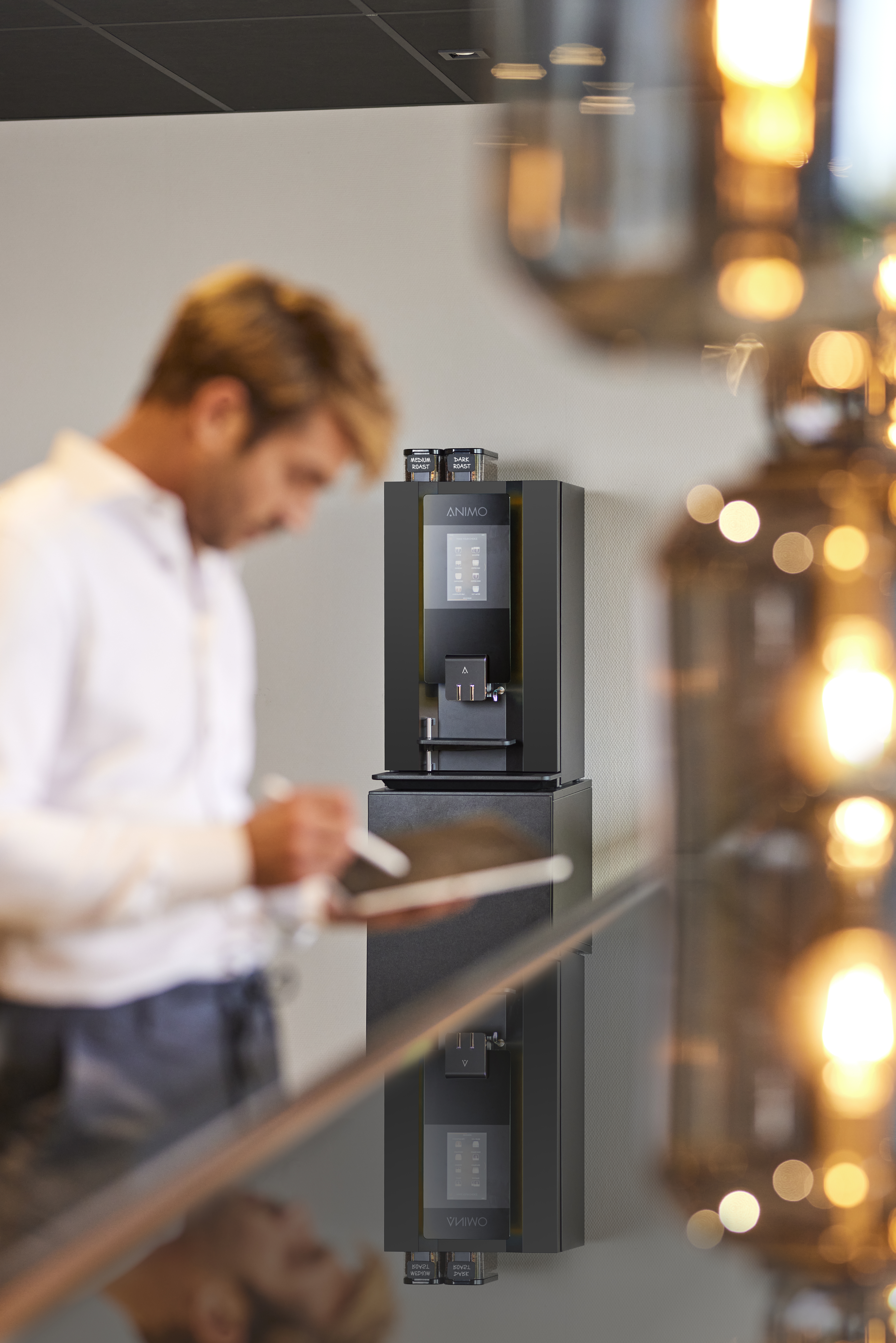

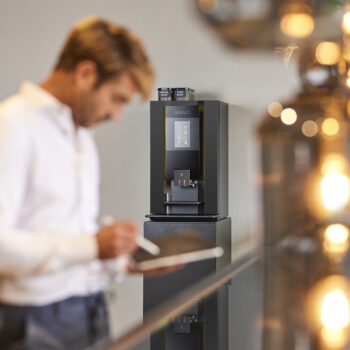

Businessman working on his tablet with an Animo OptiBean X in the background

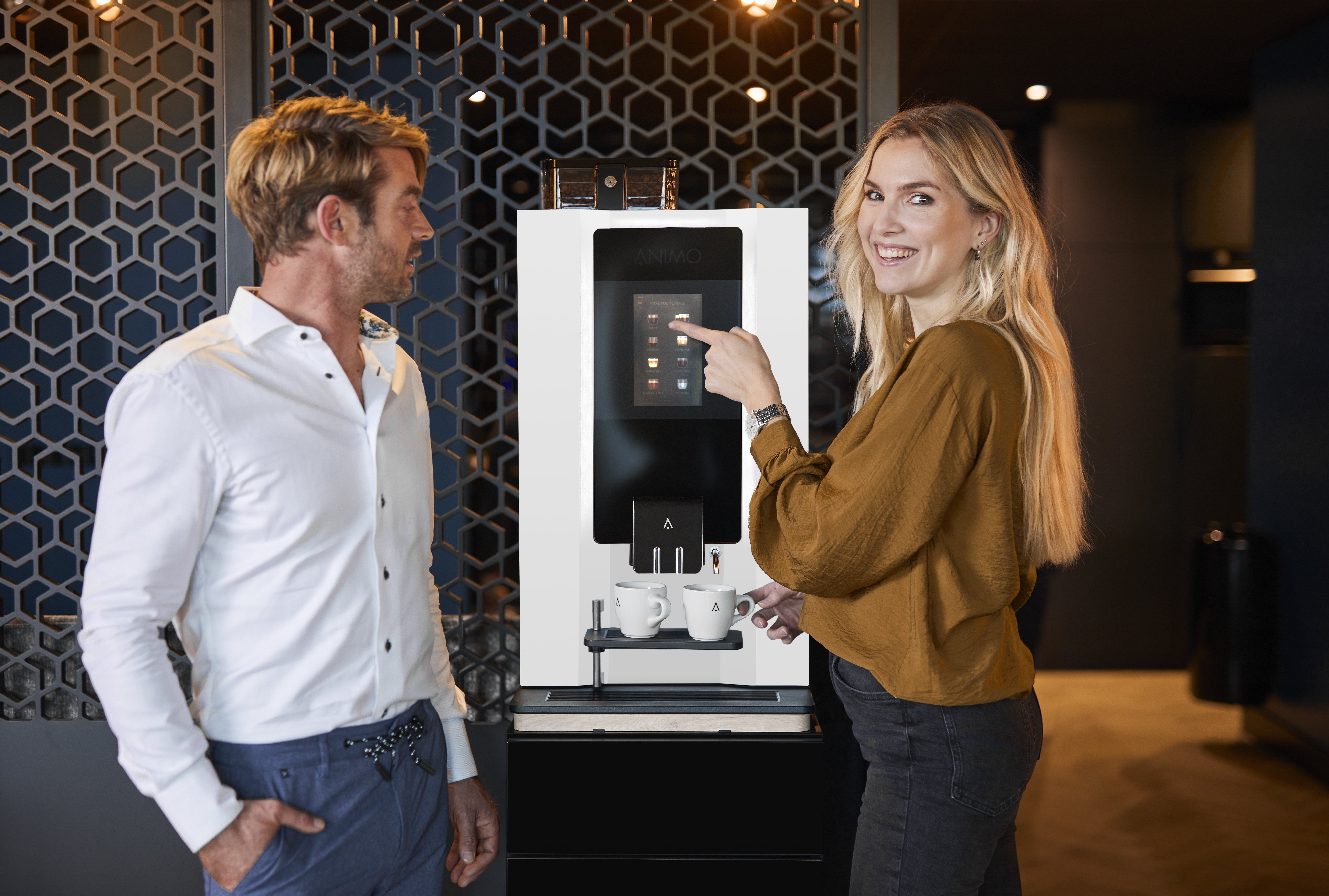

Man and woman standing in front of a white Animo OptiBean X coffee machine, the woman pressing the screen

A perfect cup of the highest quality

Freshly ground coffee beans deserve to be treated with respect. It’s all in the extraction: the combination of the amount of coffee, grind, contact time and temperature. OptiBean’s X-press precision brewer tunes everything perfectly to your taste. Because that’s what it takes to turn your extraction into a cup of the highest quality. Even when you brew two cups at once.

X-press precision brewer

OptiBean’s new X-press precision brewer tunes everything perfectly to your taste. Because that’s what it takes to turn your extraction into a cup of the highest quality. This new Swiss brewer has a capacity of 6 to 20 grams for 25 to 350 ml and is easy to clean.

Read more about the X-press brewer
Animo X-press precisiebrewer

Beautiful design

Good taste is not just about coffee. Clean design lines and friendly LED lighting make the OptiBean X a striking addition to any interior. It has an inviting and user-friendly interface and bright LED lighting that can be set to your preference. There are several private label options for company branding on the glass plate or on the touch screen.

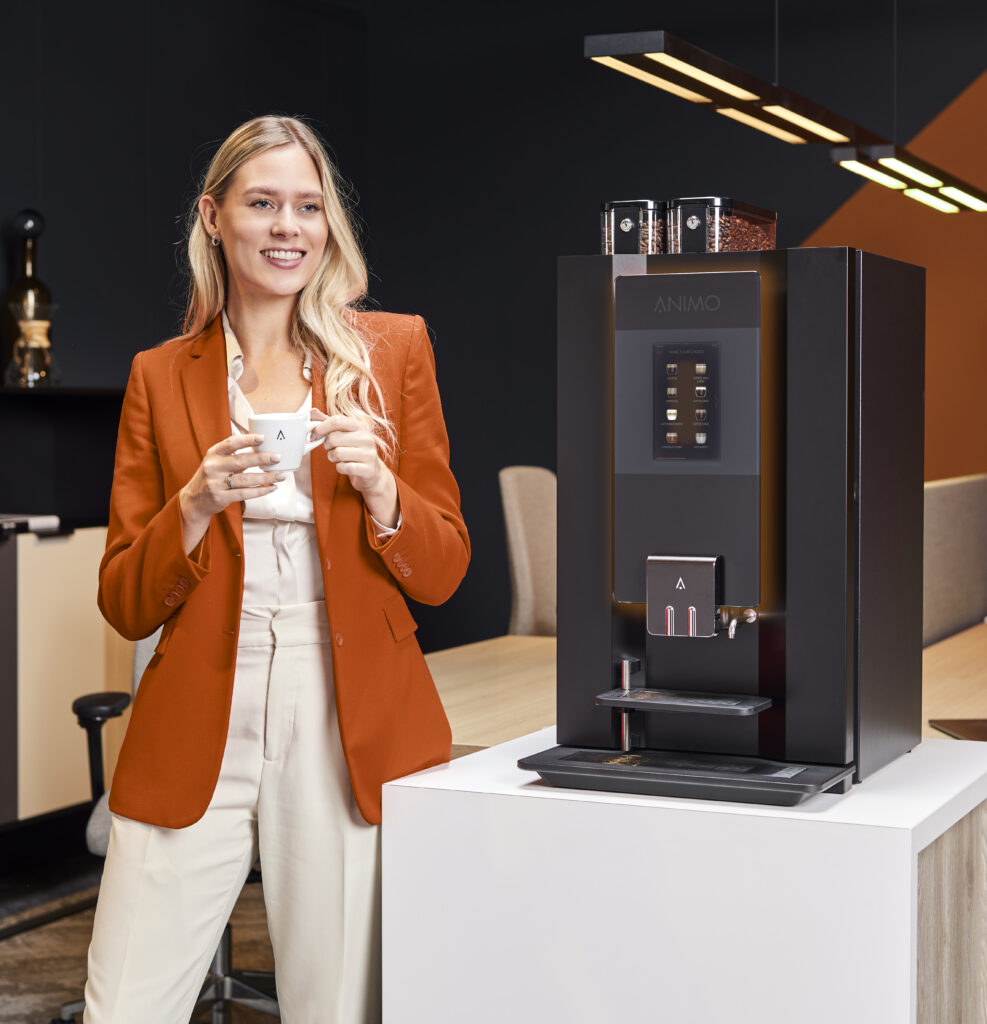

A woman drinking coffee, standing next to an Animo OptiBean X coffee machine

OptiBean X at your location

Wondering what OptiBean X looks like in your location? Scan the QR code and use the AR function for a virtual impression.

Low maintenance and durable

User-friendly in every respect, the OptiBean X requires little maintenance. Follow the intuitive interface on the 7″ touchscreen to quickly brew your espresso, coffee or tea. The new OptiBean has illustrated instructions and all parts are located in visible and accessible places. That means you can clean the machine within 12 minutes. The coffee maker is made of stainless steel and recycled plastic and has been redesigned compared to the current OptiBean. All components are selected with extreme care and are of the highest quality – with a focus on reliability, durability and user-friendliness. And, of course, OptiBean is energy efficient.

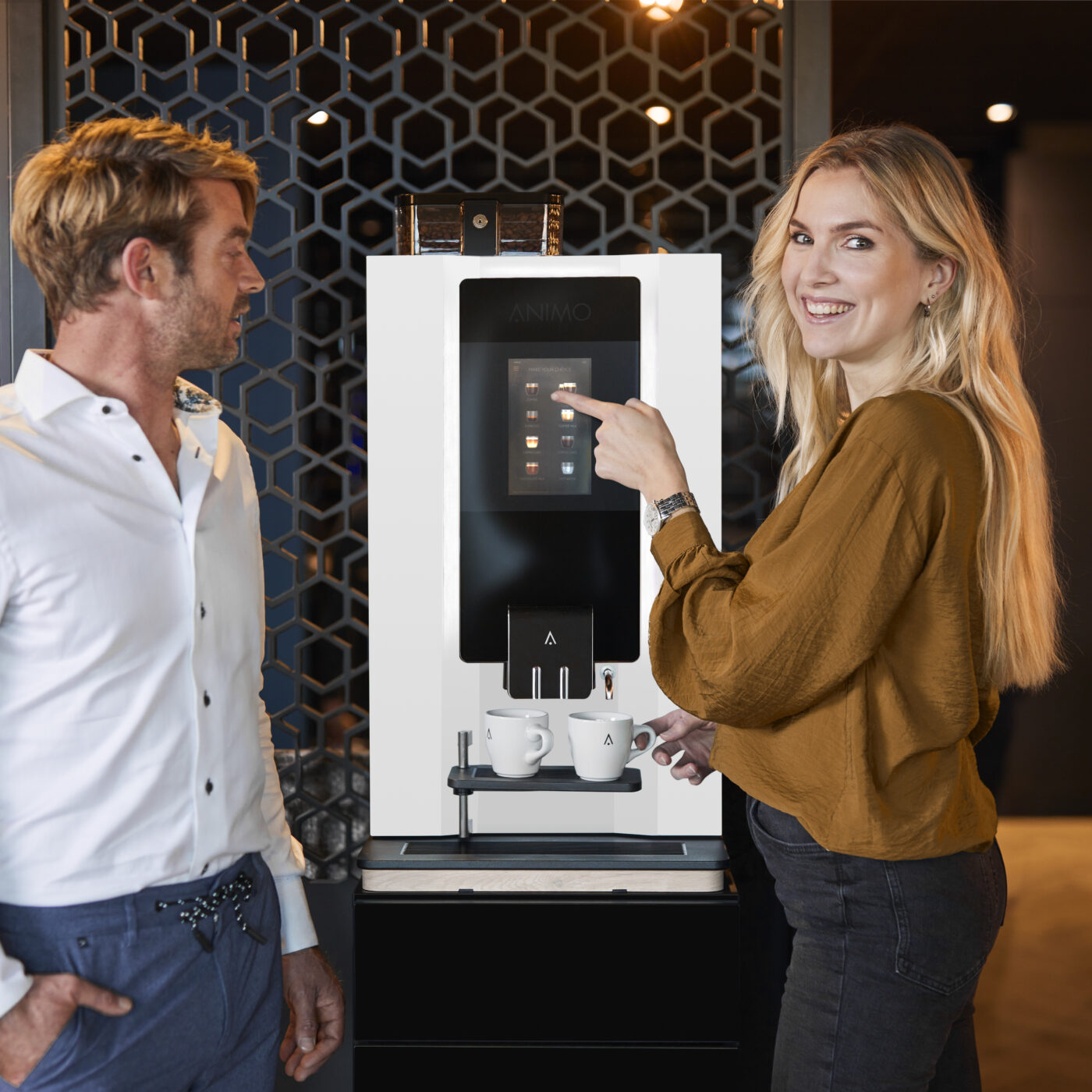

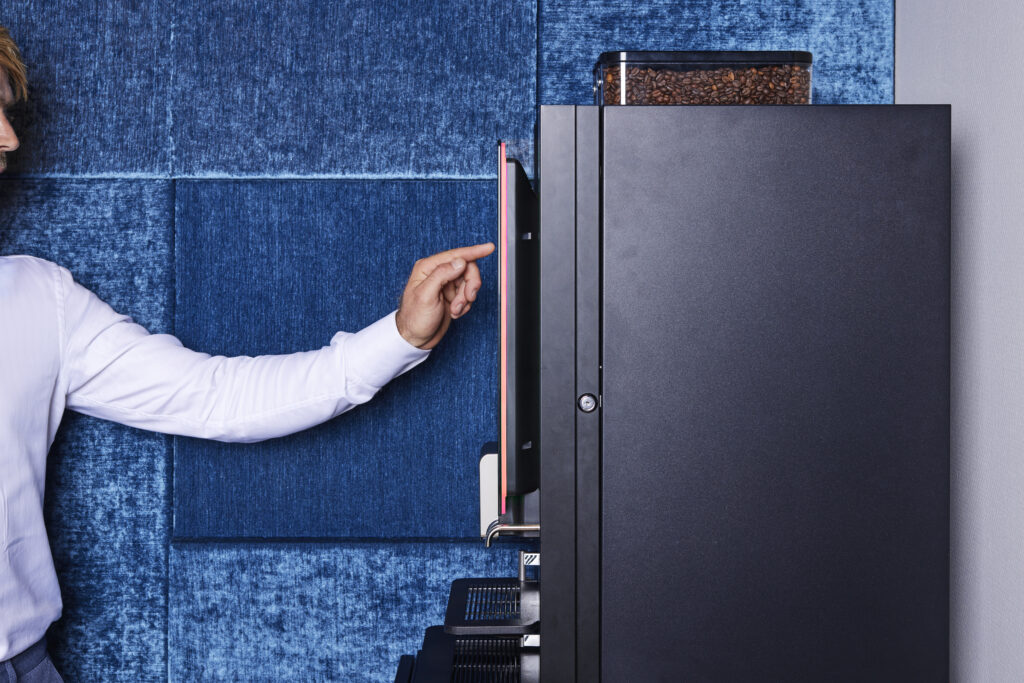

A man pressing the screen of an Animo OptiBean X coffee machine
Video on the functions and specs of an Animo OptiBean X coffee machine

A machine with just that little bit more

  • The highest quality in grinding and extraction
  • Brew two cups simultaneously in one cycle
  • Dosing larger cups faster
  • Constant in cup quality and precision in taste
  • Swiss X-press brewing group
  • X-press brewing group capacity: 6 - 20 gr.
  • Cup volumes from 25 to 350 ml
  • Adjustable feed pressure and extraction time
  • Quiet in use
  • Equipped with a by-pass as standard
  • Waste bin capacity: 7 ltr (approx. 140 coffee pucks of 8 g)
  • Possibility of filling a 1 ltr thermos jug
  • Energy label A+
  • 95.4% recyclable

View brochure

If you want to learn more about our OptiBean X coffee machine, check out our brochure online or download it to your computer.

View brochure

Maintenance & cleaning


Keep your OptiBean X coffee machine in top condition with the specially developed OptiClean cleaning products:

  • Cleaning tablets – for a clean espresso group

  • Coffee residue remover – eliminates coffee and grease build-up

  • Descaler – prevents limescale and malfunctions

These products are not a luxury, but essential for perfect coffee taste, a hygienic system, and a long lifespan of your machine. Only OptiClean has been tested by Animo and prevents residue, contamination, and unnecessary wear. The use of other brands is not recommended.

View all OptiClean maintenance products here

A woman showing a special cleaning agent from OptiClean that is optimized for Animo coffee machines

  • The OptiBean X is designed and manufactured in the Netherlands – Made in Holland.
    It uses fresh coffee beans and features a Swiss X‑press precision brewer made of stainless steel, ensuring precision extraction and top‑quality coffee.
    Additionally, the OptiBean X stands out with its sleek design, adjustable LED lighting, and user‑friendly interface.

  • The OptiBean X can program up to 24 recipes, including:

    • Espresso, coffee, lungo, americano

    • Cappuccino, latte macchiato

    • Hot chocolate

    • Hot water for tea

  • Yes – and not just coffee. It can brew two espressos, cappuccinos, or hot chocolates simultaneously.
    Thanks to the high capacity of the precision brewer, you don’t compromise on taste or quality.

  • The machine guides you with animated instructions on the 7” touchscreen.
    All components are visible and easily accessible, allowing a full weekly cleaning to be completed in just 12 minutes.

  • Yes. The machine is primarily made of stainless steel (80% already recycled) and recycled plastic, and it is 95.4% recyclable.
    Additionally, it comes with energy label A+.

  • The OptiBean X is ideal for offices, hospitality venues, healthcare facilities, (government) institutions, and premium reception areas,
    with a daily usage of up to 250 cups, suitable for 25 people or more.

  • The machine is designed for a daily capacity of 250 cups, making it ideal for locations starting from 25 users.

  • The Swiss X‑press precision brewer offers:

    • Capacity: 6 – 20 g per brew

    • Cup sizes: 25 – 350 ml

    • Variable tamping pressure for optimal extraction

    • Durable stainless steel, easy to remove and clean

  • Use only OptiClean cleaning products:

    • Cleaning tablets for the espresso group

    • Descaling agent to prevent limescale

    • Coffee residue remover
      Only OptiClean guarantees optimal taste, hygiene, and long machine lifespan.

  • With animated cleaning instructions and an accessible design, the full weekly cleaning takes just 12 minutes.

  • Yes, upon request. We are happy to discuss custom branding options.

  • Animo has an experienced support team with technical and commercial expertise, offering:

    • SwipeGuides for installation and maintenance

    • MyAnimo dealer portal with technical documentation and marketing materials

    • Personal support from our specialists

Models

  • OptiBean X 10

    • Espresso brewing capacity: 6 – 20 gr.
    • Number of bean canisters / grinder: 1
    • Number of ingredient canisters: 0
    • Number of mixers: 0
    • W 409 x D 567 x H 780 mm
    • Item no. 1010700

  • OptiBean X 11

    • Espresso brewing capacity: 6 – 20 gr.
    • Number of bean canisters / grinder: 1
    • Number of ingredient canisters: 1
    • Number of mixers: 1
    • W 409 x D 567 x H 780 mm
    • Item no. 1010701

  • OptiBean X 12

    • Espresso brewing capacity: 6 – 20 gr.
    • Number of bean canisters / grinder: 1
    • Number of ingredient canisters: 2
    • Number of mixers: 1
    • W 409 x D 567 x H 780 mm
    • Item no. 1010702

  • OptiBean X 13

    • Espresso brewing capacity: 6 – 20 gr.
    • Number of bean canisters / grinder: 1
    • Number of ingredient canisters: 3
    • Number of mixers: 2
    • W 409 x D 567 x H 780 mm
    • Item no. 1010704

  • OptiBean X 20

    • Espresso brewing capacity: 6 – 20 gr.
    • Number of bean canisters / grinder: 2
    • Number of ingredient canisters: 0
    • Number of mixers: 0
    • W 409 x D 567 x H 780 mm
    • Item no. 1010705

  • OptiBean X 21

    • Espresso brewing capacity: 6 – 20 gr.
    • Number of bean canisters / grinder: 2
    • Number of ingredient canisters: 1
    • Number of mixers: 1
    • W 409 x D 567 x H 780 mm
    • Item no. 1010706

  • OptiBean X 22

    • Espresso brewing capacity: 6 – 20 gr.
    • Number of bean canisters / grinder: 2
    • Number of ingredient canisters: 2
    • Number of mixers: 1
    • W 409 x D 567 x H 780 mm
    • Item no. 1010707

  • OptiBean X 23

    • Espresso brewing capacity: 6 – 20 gr.
    • Number of bean canisters / grinder: 2
    • Number of ingredient canisters: 3
    • Number of mixers: 2
    • W 409 x D 567 x H 780 mm
    • Item no. 1010709

  • OptiBean X 12 TS

    • Espresso brewing capacity: 6 – 20 gr.
    • Number of bean canisters / grinder: 1
    • Number of ingredient canisters: 2
    • Number of mixers: 1
    • Drain height: 260 mm
    • W 409 x D 567 x H 870 mm
    • Item no. 1011092

  • OptiBean X 22 TS

    • Espresso brewing capacity: 6 – 20 gr.
    • Number of bean canisters / grinder: 2
    • Number of ingredient canisters: 2
    • Number of mixers: 1
    • Drain height: 260 mm
    • W 409 x D 567 x H 870 mm
    • Item no. 1011097

Colors

  • Front color: black (RAL 9005)

  • Front color: white (RAL 9003)

  • Side panel color: black (RAL 9005)

  • Side panel color: wood look

  • OptiBean prepared for dispensing chilled water
  • To be used in conjunction with lower cabinet with cooling unit (1005720)
  • Item no. 1004121

  • Detects the presence of cups, glasses or thermos jugs under the spout
  • We recommend using non-transparent cups/mugs
  • Best results are obtained with lighter colors (matte black is not recommended)
  • Item no. 1003385

  • Read all about Animo’s cup dispensers here

  • Read all about Animo’s payment systems here

  • Read all about Animo’s head warmers here

  • For enlarging the bean canister by approx. 1000 gr / 133 cups
  • Item no. 1010753

  • Set of two add-on edges
  • For increasing the capacity of the two bean canisters by approx. 2 x 400 gr / 55 cups
  • Suitable for OptiMe 21 and 22
  • Item no. 1010754

  • Set of two
  • Easy to mount on bean container
  • Writable with chalk marker
  • Chalk marker is included
  • Item no. 1010968

  • Stainless steel protective plate to protect cup tray
  • Item no. 1006317

  • Supplied without water bottle
  • Incl. 6 mtr connection hose (can be shortened as needed)
  • Equipped with dry-running protection by means of float mechanism
  • Connected load: 230V / 50-60Hz / 60W
  • Throughput: 3.6 ltr / min
  • Water resistance: IPX4
  • Water connection: 3/4″
  • Item no. 93500

  • Water bottle suitable for water pump
  • Capacity: 18 ltr
  • Item no. 01013

  • For longer life and less maintenance, we highly recommend using a water filter with your coffee machine
  • Click here for our filtration systems

  • For longer life, less maintenance and better taste, we recommend using Animo cleaning products
  • Click here for our cleaning products

  • Read all about Animo’s base cabinets here

The choices depend on the ingredients you choose per canister. The flexible control allows easy adjustment of choices.

 OPTIBEAN X10OPTIBEAN X11OPTIBEAN X12OPTIBEAN X13OPTIBEAN X20OPTIBEAN X21OPTIBEAN X22OPTIBEAN X23
Coffee (cups)
Coffee (jugs)
Coffee with milk
Coffee with sugar
Coffee with milk & sugar
Espresso
Cappuccino
Latte Macchiato
Coffee choc
Chocolate
Wiener melange
Hot water
Espresso choc
Decaf
Tea
Warm milk
Chocolate Milk
Double espresso
Cold water

= Factory default setting
= Adjustable (depending on ingredients chosen)
= Possible with cooling unit in lower cabinet
= Possibility of two heads simultaneously

 OPTIBEAN X10OPTIBEAN X11OPTIBEAN X12OPTIBEAN X13OPTIBEAN X20OPTIBEAN X21OPTIBEAN X22OPTIBEAN X23
Number of bean canisters1 (2,200 gr. / 295 cups) 1 (2,200 gr. / 295 cups)1 (2,200 gr. / 295 cups)1 (2,200 gr. / 295 cups)2 (2 x 1,000 gr. / 135 cups)2 (2 x 1,000 gr. / 135 cups)2 (2 x 1,000 gr. / 135 cups)2 (2 x 1,000 gr. / 135 cups)
Number of ingredient canisters*01 (3.8 ltr. Topping)2 (1.6 ltr. Topping + 1.6 ltr. Cocoa)3 (0.9 ltr. Sugar + 0.9 ltr. Cocoa + 1.4 ltr. Topping)01 (3.8 ltr. Topping)2 (1.6 ltr. Topping + 1.6 ltr. Cocoa)3 (0.9 ltr. Sugar + 0.9 ltr. Cocoa + 1.4 ltr. Topping)
Number of mixer(s)011**2011**2
Contents espresso brewing system6 - 20 gr. / 25 - 350 ml.6 - 20 gr. / 25 - 350 ml.6 - 20 gr. / 25 - 350 ml.6 - 20 gr. / 25 - 350 ml.6 - 20 gr. / 25 - 350 ml.6 - 20 gr. / 25 - 350 ml.6 - 20 gr. / 25 - 350 ml.6 - 20 gr. / 25 - 350 ml.
Brewing time coffee (120 ml)25 - 30 sec.25 - 30 sec.25 - 30 sec.25 - 30 sec.25 - 30 sec.25 - 30 sec.25 - 30 sec.25 - 30 sec.
Hourly capacity (120 ml)approx. 80 heads (single setting) / approx. 160 heads (double setting) approx. 80 heads (single setting) / approx. 160 heads (double setting) approx. 80 heads (single setting) / approx. 160 heads (double setting) approx. 80 heads (single setting) / approx. 160 heads (double setting) approx. 80 heads (single setting) / approx. 160 heads (double setting) approx. 80 heads (single setting) / approx. 160 heads (double setting) approx. 80 heads (single setting) / approx. 160 heads (double setting) approx. 80 heads (single setting) / approx. 160 heads (double setting)
Connector value220-240V / 50-60 Hz / 1950W220-240V / 50-60 Hz / 1950W220-240V / 50-60 Hz / 1950W220-240V / 50-60 Hz / 1950W220-240V / 50-60 Hz / 1950W220-240V / 50-60 Hz / 1950W220-240V / 50-60 Hz / 1950W220-240V / 50-60 Hz / 1950W
Display7" Touchscreen7" Touchscreen7" Touchscreen7" Touchscreen7" Touchscreen7" Touchscreen7" Touchscreen7" Touchscreen
Adjustable cup tray60 - 115 mm.60 - 115 mm.60 - 115 mm.

60 - 115 mm.

60 - 115 mm.60 - 115 mm.60 - 115 mm.60 - 115 mm.
Water connection¾"¾"¾"¾"¾"¾"¾"¾"
Water drainage requiredNoNoNoNoNoNoNoNo
Waste bin content7 ltr. (Approx. 140 cups à 8 gr.)7 ltr. (Approx. 140 cups à 8 gr.)7 ltr. (Approx. 140 cups à 8 gr.)7 ltr. (Approx. 140 cups à 8 gr.)7 ltr. (Approx. 140 cups à 8 gr.)7 ltr. (Approx. 140 cups à 8 gr.)7 ltr. (Approx. 140 cups à 8 gr.)7 ltr. (Approx. 140 cups à 8 gr.)
Max drain height167 mm.167 mm.167 mm.167 mm.167 mm.167 mm.167 mm.167 mm.
Dimensions (W x D x H).409 x 567 x 780 mm.409 x 567 x 780 mm.409 x 567 x 780 mm.409 x 567 x 780 mm.409 x 567 x 780 mm.409 x 567 x 780 mm.409 x 567 x 780 mm.409 x 567 x 780 mm.
Stainless Steel Boiler Capacity1.1 ltr. / 1800W1.1 ltr. / 1800W1.1 ltr. / 1800W1.1 ltr. / 1800W1.1 ltr. / 1800W1.1 ltr. / 1800W1.1 ltr. / 1800W1.1 ltr. / 1800W
Energy LabelA+A+A+A+A+A+A+A+

*Content ingredient canisters:
3.8 ltr. Topping = approx. 2300 gr. / 200 cups
1.6 ltr. Topping = approx. 970 gr. / 138 cups
1.6 ltr. Cocoa = approx. 1000 gr. / 60 cups
1.4 ltr. Topping = approx. 650 gr. / 93 cups
0.9 ltr. Sugar = about 700 gr. / 235 cups
0.9 ltr. Cocoa = approx. 600 gr. / 38 cups
**2 mixers on request (OptiBean X12+ and OptiBean X22+)
Also available as TS type for thermos jugs.
